Applications :

• Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.

Standards :

• BS 6853 -1a
• DIN 5510-1 1-4
• NFF 16-101 F0

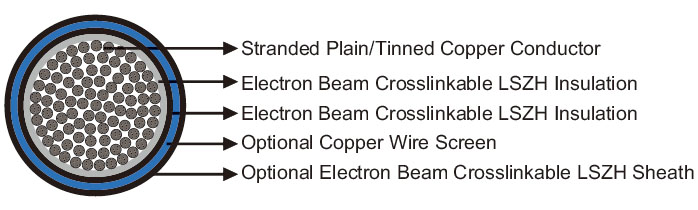

Construction :

• Conductors : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
• Insulation1 : Electron beam crosslinkable thin wall LSZH compound.
• Insulation2 : Electron beam crosslinkable thin wall LSZH compound.
• Screen(optional) : Copper wire screen (for screened and sheathed cables).
• Outer Sheath(optional) : Electron beam crosslinkable LSZH compound. (for screened and sheathed cables).

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm²	1.5	2.5	4.0	6.0	10	16	25	35	50
  Maximum Conductor Resistance	Ω/km	13.7	8.21	5.09	3.39	1.95	1.24	0.795	0.565	0.393
  Voltage Rating	KV	3.6/6

• Nominal Conductor Cross Section	mm²	70	95	120	150	185	240	300	400
  Maximum Conductor Resistance	Ω/km	0.277	0.21	0.164	0.132	0.108	0.0817	0.654	0.0495
  Voltage Rating	KV	3.6/6

Mechanical and Thermal Properties :

• Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm).
• Temperature Range : -40°C to +120°C.

Dimensions and Weight :



FRA-DW-6SU (Usheathed)



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-DW-6SU-1G1.5	1×1.5	30/0.25	1.4	4.4	20
FRA-DW-6SU-1G2.5	1×2.5	50/0.25	1.5	4.9	50
FRA-DW-6SU-1G4	1×4.0	56/0.30	1.6	5.7	60
FRA-DW-6SU-1G6	1×6.0	84/0.30	1.7	6.3	90
FRA-DW-6SU-1G10	1×10.0	80/0.40	1.8	7.5	140
FRA-DW-6SU-1G16	1×16.0	126/0.40	2.1	9.4	210
FRA-DW-6SU-1G25	1×25.0	196/0.40	2.2	10.9	300
FRA-DW-6SU-1G35	1×35.0	276/0.40	2.4	12.5	410
FRA-DW-6SU-1G50	1×50.0	396/0.40	2.6	14.5	580
FRA-DW-6SU-1G70	1×70.0	360/0.50	2.6	16.5	770
FRA-DW-6SU-1G95	1×95.0	475/0.50	2.8	18.3	1000
FRA-DW-6SU-1G120	1×120.0	608/0.50	2.9	20.6	1260
FRA-DW-6SU-1G150	1×150.0	756/0.50	3.1	22.9	1610
FRA-DW-6SU-1G185	1×185.0	925/0.50	3.3	24.8	1920
FRA-DW-6SU-1G240	1×240.0	1221/0.50	3.4	27.8	2470
FRA-DW-6SU-1G300	1×300.0	1525/0.50	3.6	30.8	3000
FRA-DW-6SU-1G400	1×400.0	2013/0.50	3.7	36.5	4220



FRA-DW-6S-OS (Screened & Sheathed)



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
FRA-DW-6S-OS-1G1.5	1×1.5	30/0.25	1.4	6.6	72
FRA-DW-6S-OS-1G2.5	1×2.5	50/0.25	1.5	7.2	89
FRA-DW-6S-OS-1G4	1×4.0	56/0.30	1.6	8.2	120
FRA-DW-6S-OS-1G6	1×6.0	84/0.30	1.7	9.1	150
FRA-DW-6S-OS-1G10	1×10.0	80/0.40	1.8	10.4	220
FRA-DW-6S-OS-1G16	1×16.0	126/0.40	2.1	12.4	330
FRA-DW-6S-OS-1G25	1×25.0	196/0.40	2.2	14.3	390
FRA-DW-6S-OS-1G35	1×35.0	276/0.40	2.4	15.7	550
FRA-DW-6S-OS-1G50	1×50.0	396/0.40	2.6	17.7	740
FRA-DW-6S-OS-1G70	1×70.0	360/0.50	2.6	20.1	970
FRA-DW-6S-OS-1G95	1×95.0	475/0.50	2.8	22.0	1240
FRA-DW-6S-OS-1G120	1×120.0	608/0.50	2.9	24.7	1510
FRA-DW-6S-OS-1G150	1×150.0	756/0.50	3.1	27.1	1900
FRA-DW-6S-OS-1G185	1×185.0	925/0.50	3.3	29.1	2220
FRA-DW-6S-OS-1G240	1×240.0	1221/0.50	3.4	32.3	2830
FRA-DW-6S-OS-1G300	1×300.0	1525/0.50	3.6	35.6	3520









Impact Resistant	Highly Flexible	UV Resistant	Oil Resistant	Weather Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
